Finally starting plans on a new genny! | 16 comments (16 topical, editorial)
Re: Finally starting plans on a new genny! (3.00 / 0) (#1)
by Jeff (ruralmcguyver at yahoo dot com) on Sat Aug 2nd, 2008 at 11:40:20 AM MST
(User Info)

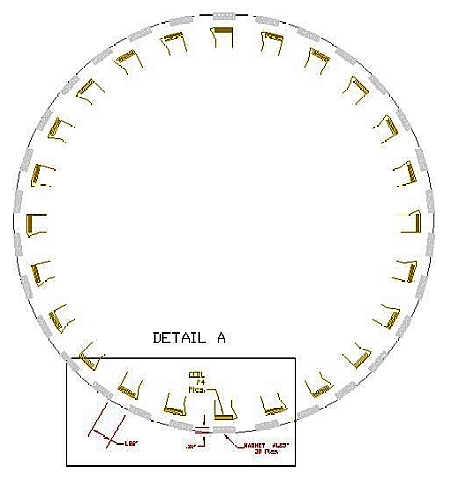

Here's the CAD drawings I have so far. I know I sized them right for the board, but due to the size/diameter of the rotor, details may be hard to see. Let me know!



I used 1 1/4inch dia. mags for the initial drawing to check spacing. After looking at the selection of mags, I picked the two I mentioned above.

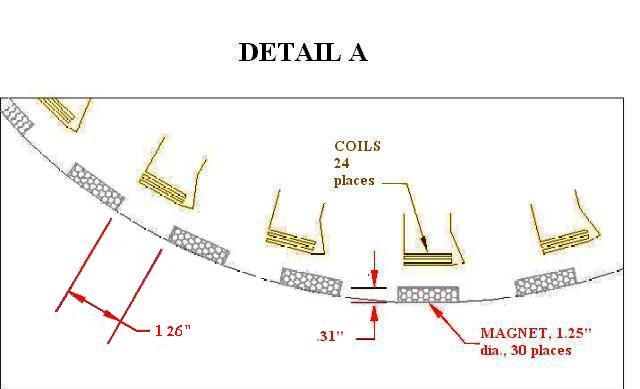

Detail View:




Rural McG



Finally starting plans on a new genny! | 16 comments (16 topical, 0 editorial)
