DXF/solidworks file for CNCed blades?
By bcd, Section Wind Posted on Mon Sep 19th, 2005 at 02:38:29 PM MST
1

last week i got a used lagunamatic cnc mill and a blade would make a perfect first part out of it. does anyone have a DXF/solidworks or the TXT i could use. any size blade up to 2'. i could do two seups per blade and make a larger one. only if you want to share. http://bcdracing.com/pics/shop/DSCN3277.JPG thanks alex

DXF/solidworks file for CNCed blades? | 12 comments (12 topical, 0 editorial)

Re: DXF/solidworks file for CNCed blades? (3.00 / 0) (#1) by Ungrounded Lightning Rod on Mon Sep 19th, 2005 at 10:23:44 AM MST (User Info)

Just out of curiosity:  Are those "XMT/RCV compatible"?

Re: DXF/solidworks file for CNCed blades? (3.00 / 0) (#5) by bcd on Mon Sep 19th, 2005 at 01:48:45 PM MST (User Info) http://www.bcdracing.com

my solidworks open xmt's. what program are you useing for modeling? [ Parent ]

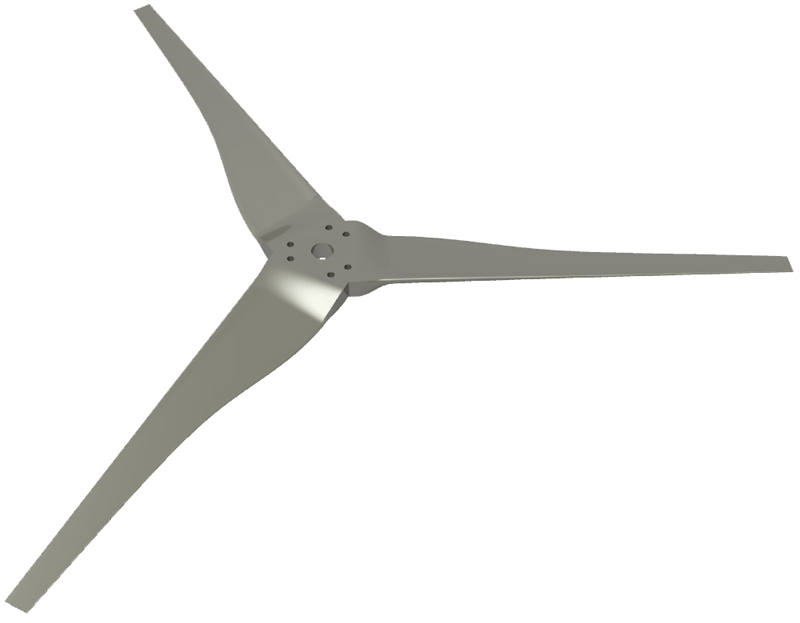

Re: DXF/solidworks file for CNCed blades? (3.00 / 0) (#2) by cr8zy1van (salsa117@hotmail.com) on Mon Sep 19th, 2005 at 10:55:18 AM MST (User Info)

Does the mill have 2' travel? I can model a blade for you and save it as DFX or any other popular format you can use. Any TSR you are looking at?

Re: DXF/solidworks file for CNCed blades? (3.00 / 0) (#4) by bcd on Mon Sep 19th, 2005 at 01:46:14 PM MST (User Info) http://www.bcdracing.com

yes, i have 5'' on the Z axis. TSR? that would be nice. i am just looking for something to start with to learn my machine. alex [ Parent ]

Re: DXF/solidworks file for CNCed blades? (3.00 / 0) (#3) by richhagen (richhagen (a t) Juno.com) on Mon Sep 19th, 2005 at 12:53:33 PM MST (User Info)

I have g-code files for small blades if that would help.  Rich 'A Joule saved is a Joule made'

Re: DXF/solidworks file for CNCed blades? (3.00 / 0) (#6) by bcd on Mon Sep 19th, 2005 at 01:49:37 PM MST (User Info) http://www.bcdracing.com

could you email it to me? i'd like to see it. alex bcdbcd@cableone dot net [ Parent ]

Re: DXF/solidworks file for CNCed blades? (3.00 / 0) (#7) by RE Pod on Tue Sep 20th, 2005 at 02:44:29 AM MST (User Info) http://www.homemade-wind-turbines.co.uk

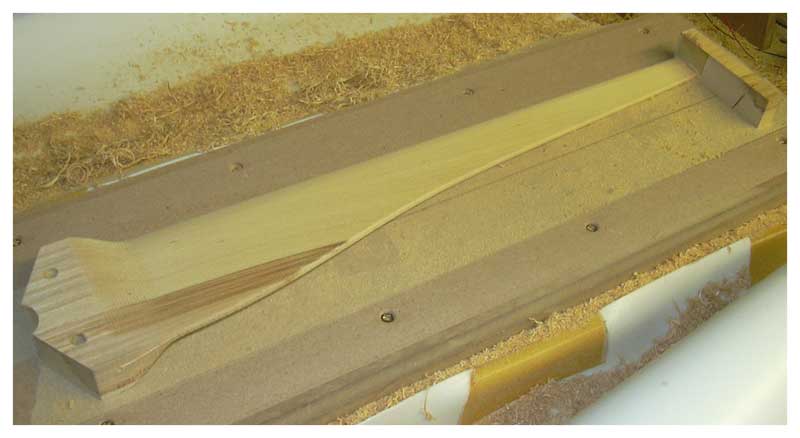

I have some blades I machined by CNC.  You are welcome to use the files if you wish.

Re: DXF/solidworks file for CNCed blades? (3.00 / 0) (#8) by bcd on Tue Sep 20th, 2005 at 06:39:25 AM MST (User Info) http://www.bcdracing.com

wow, they look nice. what did you model them after? what size and how are they working? [ Parent ]

Re: DXF/solidworks file for CNCed blades? (3.00 / 0) (#9) by RE Pod on Tue Sep 20th, 2005 at 08:38:19 AM MST (User Info) http://www.homemade-wind-turbines.co.uk

Hi.  The blades are approx 500mm in length, each.  Giving a 1000mm rotor. They were not modelled to any specific dimentions.  They are my first cnc machined set. They seem to work pretty well, although the wind turbine they are attached to, has very poor performance, mainly because the alternator is so useless. There's a video of the blades running here: http://www.build-a-windturbine.com/videos/windytest.wmv I'm currently building another wind turbine. http://www.homemade-wind-turbines.co.uk [ Parent ]

Re: DXF/solidworks file for CNCed blades? (3.00 / 0) (#10) by bcd on Tue Sep 20th, 2005 at 10:17:52 AM MST (User Info) http://www.bcdracing.com

yeah, that looks like a good first size. nice work. what rpm do you think you are getting out of them? how big will MK2's be? alex [ Parent ]

Re: DXF/solidworks file for CNCed blades? (3.00 / 0) (#12) by RE Pod on Tue Sep 20th, 2005 at 12:37:23 PM MST (User Info) http://www.homemade-wind-turbines.co.uk

To be honest I'm not sure what rpm's I'm getting I had no way to measure it.  My DV cam is 25fps and on some of the video the blades appear still.  So I assume they are doing 25fps * 60 sec = 1500rpm.  In the video there's no alternator on the machine.  I was just testing the blades. The alternator slows the blades quite a lot.  On 12V charging it's probably too much. 24V seems much better.  I've abandoned this wind turbine. There's way too much wrong with the alternator.  I may re-use the blades for another machine one day. The MK2 wind turbine will eventually have a 2 metre rotor. 1 Metre, each blade. I plan on machining them from foam in 3 sections, gluing the sections together, and then covering with glass cloth and resin. At the minute I'm still winding the coils....... 3 more to go.  I hate winding coils. Apart from that, I'm having fun. Regards Terry..... [ Parent ]

Re: DXF/solidworks file for CNCed blades? (3.00 / 0) (#11) by cr8zy1van (salsa117@hotmail.com) on Tue Sep 20th, 2005 at 10:46:13 AM MST (User Info)

Would any of you be willing to sell me a couple blades? I will be the first one to admit that my woodshop skills are not up to par. I have tried several different approaches and just cant get my ducks in a row. It seems like you folks with CNC machines have a distinct advantage :) [ Parent ]
